THEIA-CAM™ Family Kit | THSCJ101
13MP PDAF Camera for NVIDIA Jetson Orin™ NX/Nano
THEIA-CAM™ for NVIDIA Jetson Orin™ NX/Nano
Dedigned for NVIDIA Jetson Orin™ NX
Multiple High-Resolution choices
Ultra-quick Autofocus (Phase-Detection Auto-Focus)
Best-in-Class Image Quality
Scalable for High Volume Production
NVIDIA Jetson Orin Users Now Have a Ready to Use 13MP PDAF Camera Solution
For Jetson Orin™ NX, one of their latest platforms, we have developed not only hardware to connect NVIDIA Jetson Orin NX Carrier Board by Auvidea, but also software suites for Linux platform.
The THSCJ101 enables NVIDIA Jetson Orin™ NX/Nano users to quickly integrate THEIA-CAM™ into their platforms.
THEIA-CAM™ Powered by THine’s High-performance ISP
THP7312-P 16MP ISP
We used capabilities of THine’s ISP (THP7312-P) to maximize the image quality perfomance of Sony’s 13MP PDAF Sensor IMX258.
The number of resolution choices, the Image Quality under any light conditions, the Autofocus performance, and unit-to-unit performance alignment are all optimized.
Further, with THine’s ISP Firmware development kit, customers are able to further customize the solution including using a different image sensor.
THSCJ101 THEIA-CAM™ Overview
Here are some of the key features of the THSCJ101 offering.

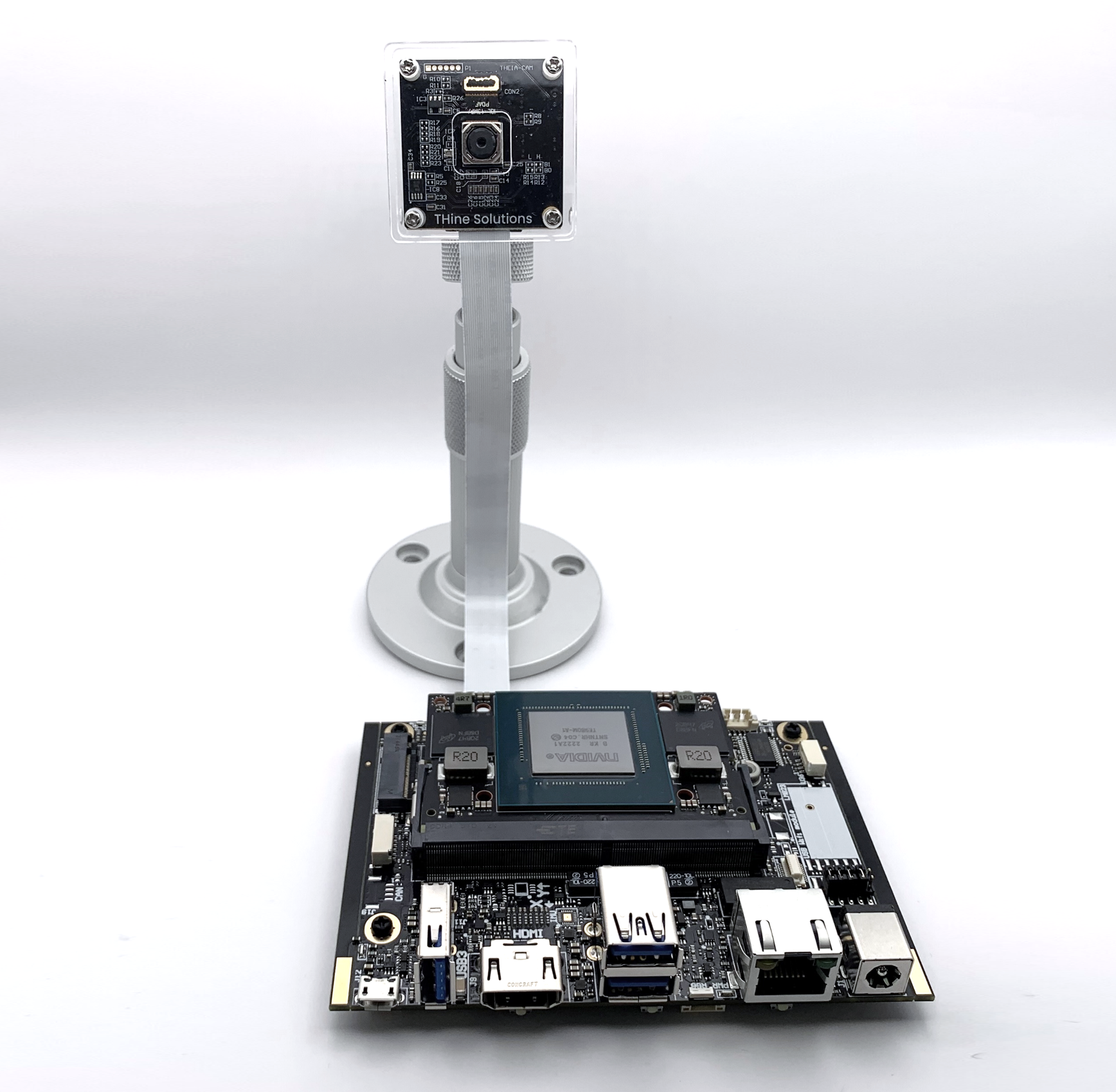

Fully Compatible with NVIDIA Jetson Orin™ NX

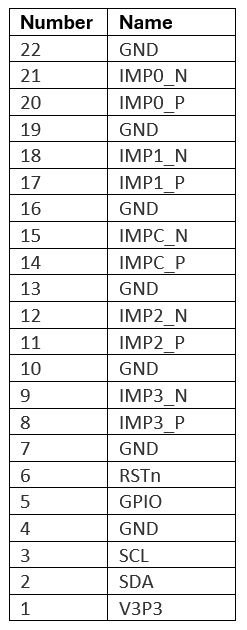

THSCJ101 Output 22-pin Connector Pin Mapping
The THSCJ101 works with NVIDIA Jetson Orin™ NX platform.
Linux Binary, V4L2 Driver, and ISP Firmware is available upon request.
The THSCJ101 MIPI CSI-2 output connector is for a 0.5mm pitch 22pin connector with pin mapping information available in the datasheet.

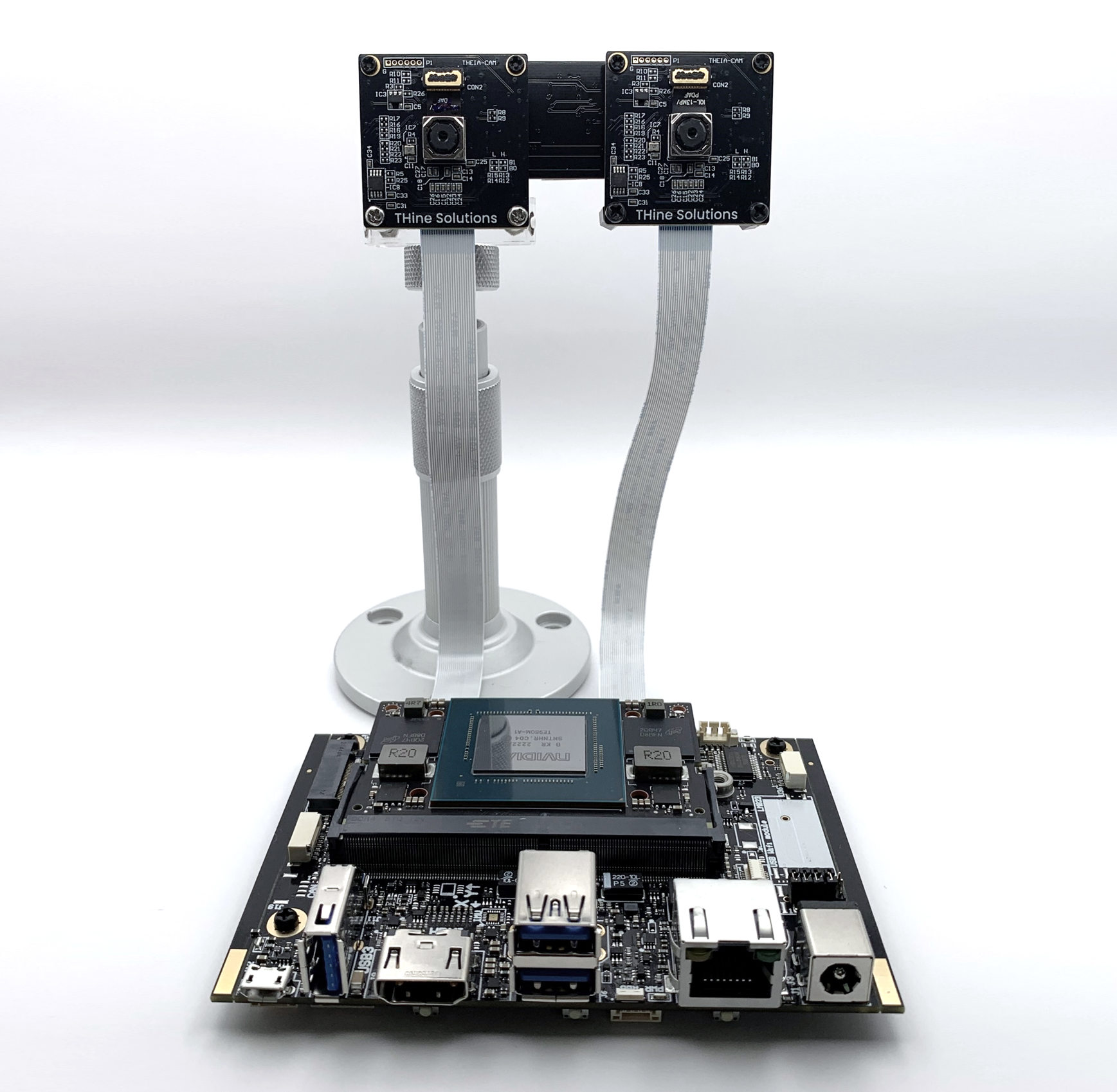

2 x THSCJ101 with Auvidea’s Carrier Board
Auvidea’s carrier board has 2 camera inputs, which is also supported by the THSCJ101. You can use 2 THEIA-CAM™s with Jetson Orin!
High-Resolution Choices
Unlike typical SBC cameras, the THSCJ101 supports 4-lane MIPI CSI-2 output allowing to use a variety of high-resolution choices.
Ultra-fast Autofocus (PDAF, Phase Detection Autofocus)
Sony’s Image Sensor (IMX258) along with fine-tuned ISP Firmware provides ultra quick autofocus.
Best-in-Class Image Quality
Based on our years of Image Quality support for numerous customers, we developed and tuned the ISP firmware. The Image Quality perfomance exceeds iPhone 12 camera Image Quality in some of Imatest Image Quality testing criteria.
Scalable for high-volume production
The unit-to-unit image quality (Auto White Balance, Lens Shading, PDAF, etc.) is fully characterized and calibrated at Factory. Thus, the hardware architecture is scalable for any size of production without any compromise.
Technical Specifications
Auto Focus Modes
One Shot Contrast AF
Continuous Contrast AF
One Shot Contrast and PDAF Hybrid AF
Continuous Contrast and PDAF Hybrid AF
V4L2 Image Functions
Size and Frame Rates | 1080p30, 1080p60, 3M at 30fps, 4K2K at 30fps, 13MP at 20fps(*)
Focus Mode | Auto or Manual
Auto Focus Method | Contrast or PDAF Hybrid
Focus Position | Infinity to 80mm
Brightness | 21 steps
Contrast | 21 steps
Saturation | 32 steps
Sharpness | 32 steps
Noise Reduction | Auto or Manual
Noise Reduction Level | 11 steps
Auto Exposure Bias | 13 steps from -6/3EV to +6/3EV
Power Line Frequency (Flicker Cancellation) | 50Hz or 60Hz
White Balance Mode | Auto or Manual
Manual White Balance | x1 to x7.97 for Red and Blue
Rotation | 0 or 180 degrees
Low Light Exposure Mode | Exposure Time or Fixed Frame Rate
(*) may not be available for all applications - Contact THine Solutions for more information.
Ways to Use THSCJ101
Use as is for volume production
Use as Proof of Concept
THine Solutions can customize the layout and manufacture the camera portion for production of End Product
Use as Reference Design
THine Solutions will license the design files and firmware
Use as start toward End-to-End Camera System Development
THine Solutions’ design tools can support full camera system customization including changes to Camera image sensor, Camera lens and ISP firmware
To learn more about Camera Development Kit tools information click here.
