How to Update THSCU101 Firmware

Introduction

Note: Some USB hosts might not meet the USB spec to support BESL (Best Effort Service Latency). These hosts might not stream images over USB2 with our standard firmware that supports the BESL requirement. Please contact us to request firmware that will work with those hosts if needed for your application.

Software Overview

Microsoft Windows 10, Windows 11, or macOS

We recommend using Windows 10 or Windows 11. We also support macOS. If your only choice is Mac, please follow the instruction. In this page, we will use Windows’ default camera application “Camera.”

THine Solutions Camera Extension Controller

To check the version of your THSCU101 Firmware and if necessary to delete the Firmware, THine Solutions Camera Extension Controller is required. Click the link to download the software. The detailed information, go to What You Can Do with Camera Extension Controller App.

Cypress+Infineon EZ-USB FX3 Software Development Kit (SDK)

The Firmware of the THSCU101 is loaded in a SPI Flash to drive Cypress+Infineon CX3. To upload the Firmware, go to the Cypress+Infineon EZ-USB FX3 Software Development Kit (SDK) page.

Click the “Download” button on the Cypress+Infineon SDK page and download the EZ-USB FX3 SDK for Windows (x32-x64) (exe).

THine Solutions THSCU101 Firmware Binary

The latest version of the THSCU101 Firmware Binary is here.

Updating Firmware

Checking Your Firmware Version

At first, connect your THSCU101 to your PC with a USB cable. Then, launch Camera app.

Note: Camera app needs to be running all the time. Do not close or minimize the app, in order to check the version and to delete firmware correctly.

In the Camera app, click on “Change Camera” icon on the right shoulder of the window to select “CX3-UVC.” Then you should be seeing the images that your THSCU101 streams.

Then launch Camera Extension Controller.

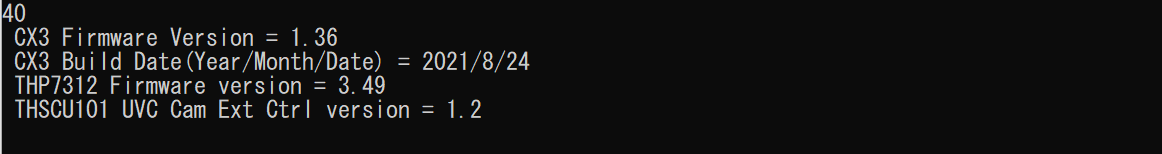

Command:

40

And the versions for CX3 and THP7312 will be shown.

The latest revision numbers as of September 25, 2023 are:

• CX3 Firmware: 1.58

• THP7312 Firmware: 3.69

You can also find the revision numbers in README.txt in the zip file.

Delete Current Firmware

If any of CX3 and THP7312 is outdated, here is how to delete it.

Assuming your THSCU101 is connected to your PC and the Camera app is streaming the THSCU101, launch Camera Extension Controller.

Command:

77

You will be asked to confirm you are OK to delete the Firmware. To delete, command:

77

Then, the Camera app will no longer show the image. (You may hear the Windows sound of USB device disconnected.)

Program the Latest Firmware into THSCU101

To upload the latest Firmware, we will use Cypress+Infineon SDK.

Windows 10:

From Start > Cypress > Control Center. (Some times the path is Start > Programs > Cypress > EZ-USB FX3 SDK > Cypress USBSuite > Control Center.)

Windows 11:

From Start > All apps > Cypress > Control Center. (You can also launch Control Center from the Search box by typing “Control Center”.)

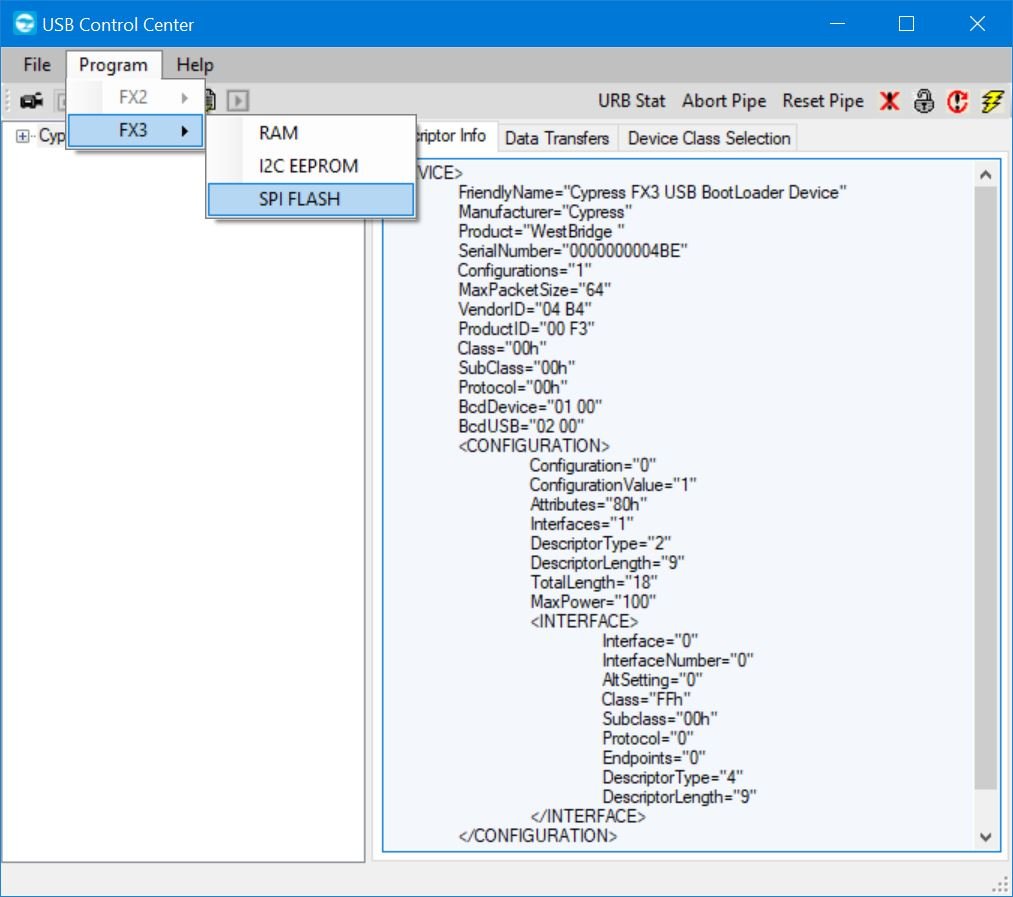

Click Program, select FX3, then SPI Flash.

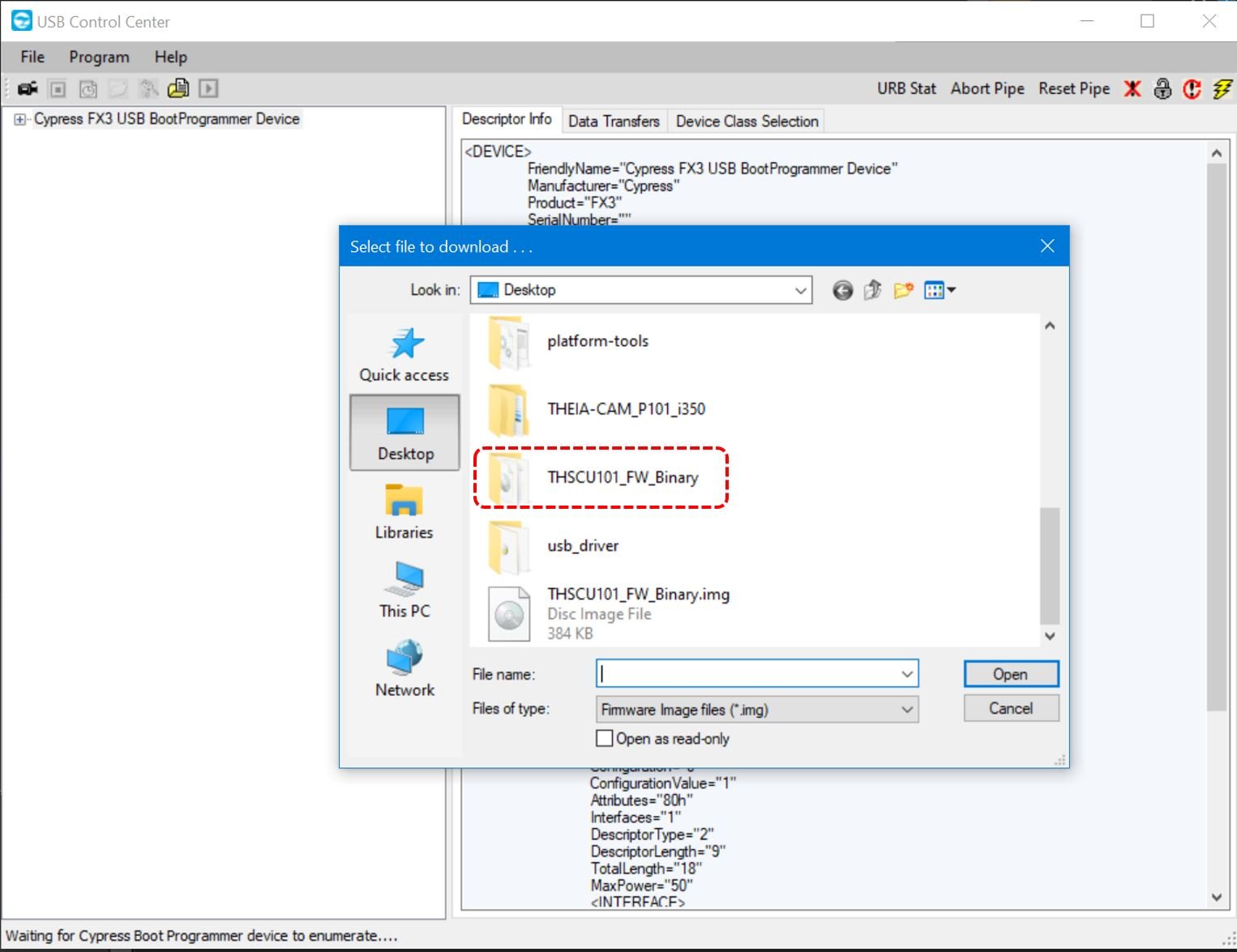

Select the latest THSCU101 Firmware binary that you downloaded, and hit Open. This will show “Programming of SPI FLASH Succeeded” in the bottom left corner of the USB Control Center window. This may take around 30 seconds.

Once the SPI FLASH is succeeded, you may close the Cypress Control Center window.

Note: Cypress Control Center would NOT show a device if the device is recognized as “WestBridge” in Device Manager, because the driver is not found properly.

In that case, click the Windows Start button, right-click on Computer in the right-hand column, and select Properties to bring up System Information. Then, click Device Manager at the top of the left column.

Right-click on WestBridge and select Browse my computer for driver software.

Windows 10:

The driver is located at C:\Program Files (x86)\Cypress\EZ-USB FX3 SDK\1.3\driver\bin\Win10.

Windows 11:

The driver is located at C:\Program Files (x86)\Cypress\EZ-USB FX3 SDK\1.3\driver\bin\Win11.

Your SDK version number may be higher than 1.3. The Device Manager window should remove the WestBridge entry and identify the SDK board as the Cypress FX3 USB BootLoader Device (top entry).

This information is based on Cypress+Infineon. For detailed information, see p.44 of Infineon Getting Started with EZ-USB® FX3™

Reboot THSCU101

Now that the FLASH on the THSCU101 contains the latest Firmware, the last thing to do is reboot. Disconnect the USB Cable of the THSCU101 reconnect it back, which let the THSCU101 boot up with the new Firmware.

Congratulations! Your THSCU101 is now up-to-date.

Did you know?

With the latest THSCU101 firmware, the camera appears as “THine Solutions THEIA-CAM” in your Windows Device Manager. To make it happen, see How to Update THSCU101 Device Manager Appearance.
